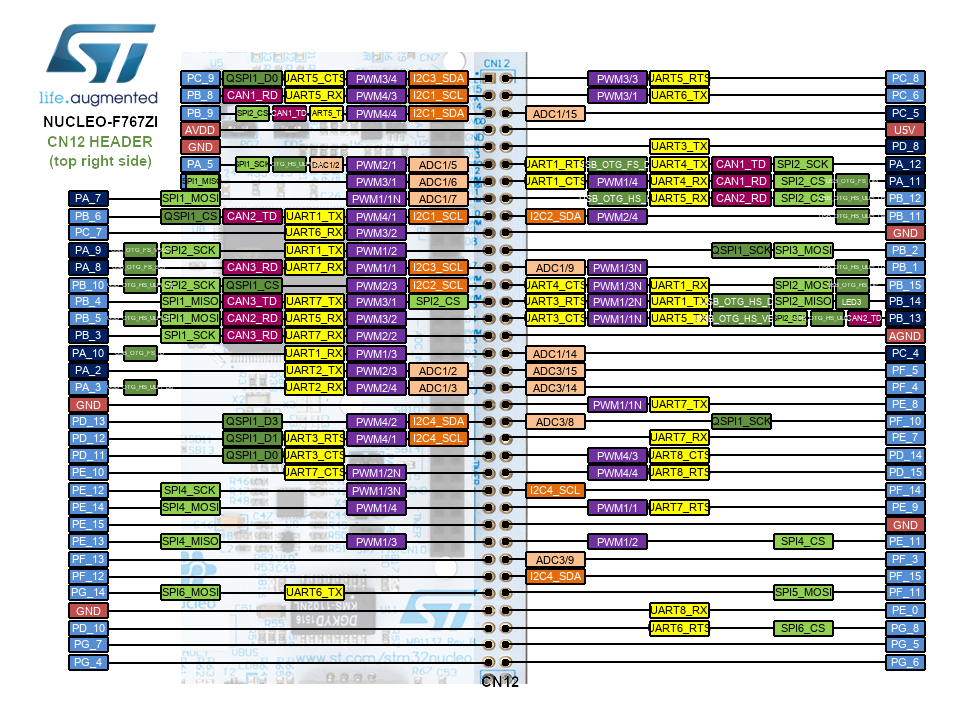

ARM®32-bit Cortex®-M7 + DPFPU + Chrom-ART™ Acceleratorĭikkat: Paket içerisinden usb kablo çıkmaz. Support of wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs, ARM® mbed™ The STM32 Nucleo-144 boards featuring the Nucleo F767ZI development board is an easy way to provide a flexible way for developers to handle new conceptual. Comprehensive free software HAL library including a variety of software examples. IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support). USB OTG or full-speed device with Micro-AB connector (depending on STM32 support). External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector. Three different interfaces supported on USB: virtual COM port, mass storage, debug port Selection-mode switch to use the kit as a standalone ST-LINK/V2-1. On-board ST-LINK/V2-1 debugger/programmer with SWD connector:. ST morpho extension pin header footprints for full access to all STM32 I/Os. ST Zio connector including: support for Arduino™ Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals.
STM32 microcontroller in LQFP144 package.The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM®mbed™online resources at. The ST Zio connector, which is an extension of Arduino™ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.
#Stm32f767zi 32 bit
STM32F767ZI Geliştirme Kiti ST-LINK V2 32 Bit ARM Cortex M7 216MHz 2 MB Flash 512KB SRAM Arduino
